Prime Quality/hot Selling/factory Direct/low Price/large Stock/z15-360g/DC51D+Z/DC52D+ZGalvanized Strip

5 0 Reviews

  • Kangtao

  • Building, Corrugated roofing sheet, Electrical appliances, Automobile industry, Transport Packaging, Machinery processing, Interior decoration etc

  • ISO, CE, SNI ect

  • DC51D+Z, DC52D+Z, DC54D+Z, DC53D+Z, S250GD+Z, S300GD+Z, S350GD+Z, S450GD+Z, S550GD+Z

  • light oil, oil, dry, chromate, passivated, Gr-free, etc

  • 10-600 mm

  • 0.12-4.0 mm

  • Galvanized Steel Strip/tape

  • EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653

  • Coil\ Strip

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Name
Galvanized Steel Strip/tape
Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Grade
DC51D+Z, DC52D+Z, DC54D+Z, DC53D+Z, S250GD+Z, S300GD+Z, S350GD+Z, S450GD+Z, S550GD+Z
Width
10-600 mm
Thickness
0.12-4.0 mm
Coating
Z15-360g/m2
Certification
ISO, CE, SNI ect
Surface Treatment
light oil, oil, dry, chromate, passivated, Gr-free, etc
Spangle
Large spangle, normal spangle(NS), minimized spangle(MS), spangle-free(FS)
Coil Weight
1-5 tons or as your requirement
Coil ID
508/610 mm
Application
Building, Corrugated roofing sheet, Electrical appliances, Automobile industry, Transport Packaging, Machinery processing, Interior decoration etc
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by seven steel belt.or according to customer's requirement.

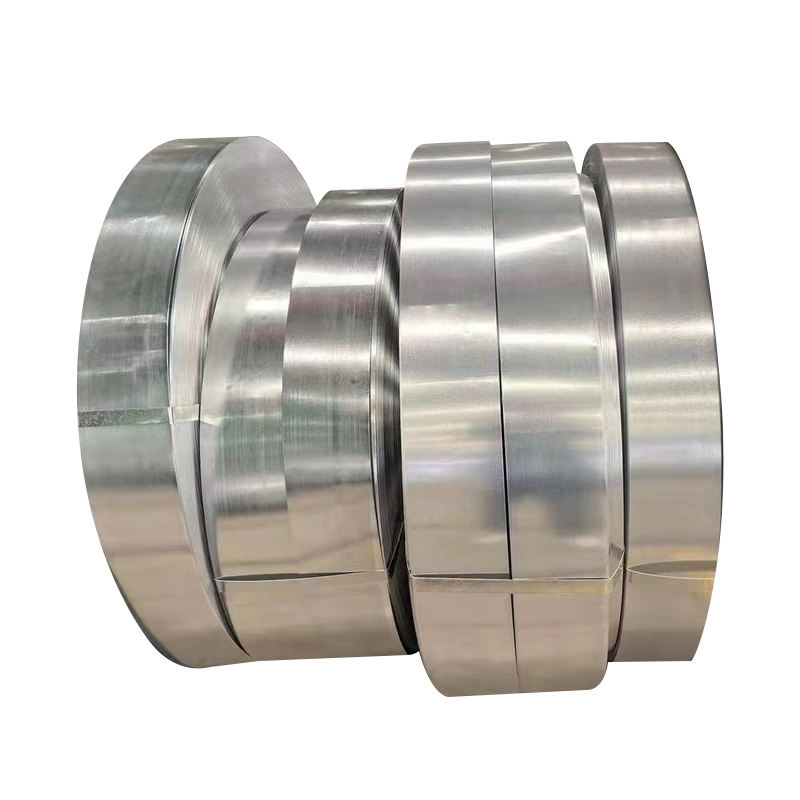

GALVANIZED STEEL strip/tape

Hot-Dipped Galvanized Steel Strip in Coil (GI) is manufactured by feeding full-hard steel sheets—after they’ve been acid-washed and rolled—into a molten zinc bath, resulting in a zinc layer applied to their surface. Thanks to the natural traits of zinc, this product offers strong corrosion resistance, good paint adhesion, and impressive workability.
Galvanized strips are products further processed from galvanized coils, and their varied dimensions can meet more differentiated needs.


Superior Corrosion Resistance:
The zinc coating forms a protective barrier, effectively shielding the steel from rust and corrosion, even in humid, rainy, or chemical-exposed environments.
Longevity and Durability:
Thanks to the robust zinc-steel bond, galvanized coils maintain structural integrity over extended periods, withstanding harsh conditions and reducing the need for frequent replacement.
Excellent Mechanical Properties:
Retains high strength and toughness of the base steel, ensuring reliable performance in load-bearing or high-stress applications.
Superior Processability and Versatility:
Easy to cut, bend, or shape without damaging the zinc layer, making it suitable for diverse uses across construction, automotive, and manufacturing sectors.

Production process: precise control from substrate to finished product

Our production process integrates efficiency and quality assurance: Pretreatment: unwinding, welding, degreasing cleaning (5 levels of spray system to remove oil and impurities); Coating process: after annealing and reduction, the aluminum and zinc molten pool is immersed, and the thickness of the coating is accurately controlled by the air knife; Post-treatment: finishing straightening to improve flatness, optional passivation/oiling anti-rust treatment.

Green manufacturing: Environmental value proposition

Cleaner production: using gas radiant tube heating technology, energy saving 22% compared with traditional electroplating process; Recycling economy: 100% scrap material is recovered and remelted, and the recovery rate of  zinc is > 95% after the slag is separated by centrifugation; Long life design: theoretical life ≥25 years in C3 corrosive environment (ISO 12944 standard), reducing resource consumption.

Application area: Multi-industry solutions

Construction: Used for roofing, wall cladding, and structural parts, resisting corrosion in outdoor conditions;Automotive Industry: Applied in chassis parts and underbody components, withstanding moisture and wear;Household Appliance Industry: Makes appliance shells (refrigerators, washing machines) for rust resistance and a neat finish;Manufacturing: Used in storage tanks and electrical enclosures, easy to process for various needs.

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel ,and our company also is a very professional and technical foreign trade
company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.

Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you accept the third party inspection?
A: Yes absolutely we accept.

Q: Do you provide samples ? is it free or extra?
A: The sample could can provide for customer with free,but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
