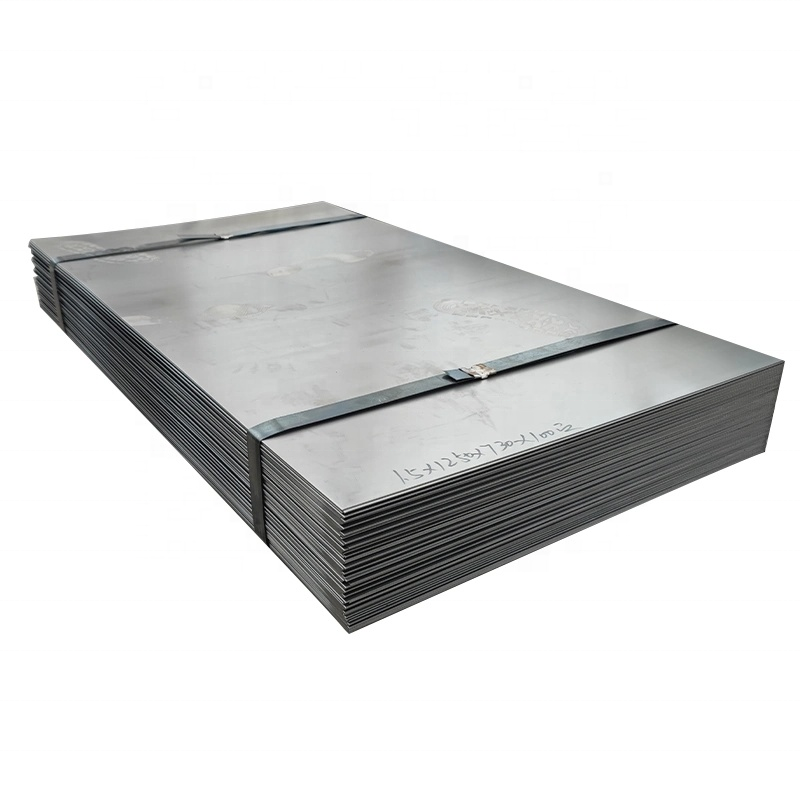

Hot Rolled HR MS Mild Carbon Wear Resistant Steel Plate Nm360 Nm400 Nm450 Nm500 3mm-100mm Thickness ASTM/DIN/ASIS Bending

5 0 Reviews

  • Kangtao

  • Building Construction

  • ISO9001

  • 500-2500mm

  • 3-120mm

  • Wear Resistant Steel Plate

  • ASTM, JIS, GB, EN

  • Hot Rolled

  • Carbon steel

  • Steel Plate

  • 1-12m or as required

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Name
Wear Resistant Steel Plate
Thickness
3-120mm
Width
500-2500mm
Length
1-12m or as required
Tolerance
±0.2mm
Standard and Grade
GB: NM360, NM400, NM450, NM500, NM550, NM600, Mn13
ASTM: AR400, AR450, AR500, AR600
DIN: XAR360, XAR400, XAR450, XAR500, XAR550, XAR600, Dillidur400, Dillidur500
NBN: QUARD400, QUARD450, QUARD500
SFS: RAEX400, RAEX450, RAEX500
JFE: EH360, EH400, EH450, EH500, EH550, EH600
Applications
1. Engineering machinery and equipment:
loaders, bulldozers, xcavators;
2. Handling machinery and equipment:
unloading mill chain; plate, hopper liner, grab the edge plate, and automatic tipper tipping plate;
3. Of construction machinery equipment:
Cement pusher plate, concrete mixer liner, mixing building lining board, dust collector liner;
4. Metallurgical machinery equipment:
iron ore sintering conveying elbow, iron ore sintering machine liner, scraper machine liner;
5. Mining machinery and equipment:
Aggregate, stone crusher liner, blade;
6. Other mechanical equipment:
Sand barrel, blade, a variety of port machinery wear part
7. Of thermal power equipment:
Coal mill lining board Coal, coal conveying pipe, coal distributor frame, unloading equipment lining plate.
Package
Waterproof paper, and steel strip packed. Standard Export Seaworthy Package suit for all kinds of transport, or as customer's requirement.
MOQ
10 tons
Delivery time
8-15 days after deposite received.
Chemical Composition(%)
Steel Grade
C
Si
Mn
P
S
Cr
Ni
Mo
B
NM360
≤0.25
≤0.70
≤1.30
≤0.025
≤0.010
≤1.40
≤1.00
≤0.50
≤0.004
NM400
≤0.25
≤0.70
≤1.60
≤0.025
≤0.010
≤1.40
≤1.00
≤0.50
≤0.004
NM450
≤0.35
≤0.70
≤1.70
≤0.025
≤0.010
≤1.75
≤0.80
≤0.55
0.005-0.006
NM500
≤0.38
≤0.70
≤1.70
≤0.020
≤0.010
≤1.20
≤1.00
≤0.65
0.005-0.006
Mechanical Properties
Steel Grade
Y.S (MPa)
T.S (MPa)
Elongation A5(%)
Impact Test
Hardness

min
min
min
(°C)
AKV J(min)
HBW
NM360
800
1000
10
-20
30
320-400
NM400
1000
1250
10
-20
30
360-440
NM450
1250
1500
10
-20
30
410-490
NM500
1300
1700
10
-20
30
450-540
Please contact us for more details about the size we can offer!
Wear-resistant steel plate is a type of steel plate specifically designed to withstand extreme wear conditions. By adding alloying elements such as chromium, molybdenum, manganese and nickel, or adopting advanced heat treatment processes, the durability of the steel plate has been significantly improved. These improvements enhance the hardness, wear resistance and impact strength of the
steel plate, making it an ideal choice for demanding application fields.
Wear-resistant plates are widely used in engineering machinery, mining equipment, conveying systems and steel structure buildings, helping to extend the service life of equipment and significantly reduce maintenance costs.
