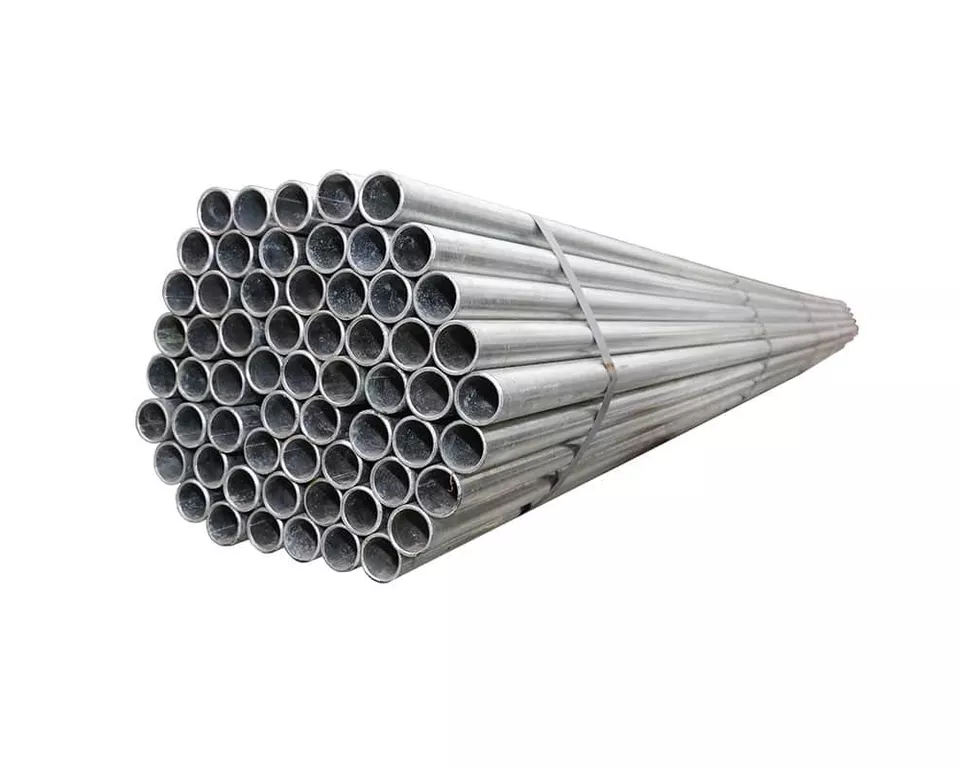

Product Name	Galvanized Steel Pipe
Standard	ASTMA53,BS1387-1985,GB/T3091-2001,EN39,BS1139
Grade	Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D
Thickness	0.8mm-25mm
Outer Diameter	1/2 inch—8 inch (OD 21.3mm—OD 219mm)
Ends	Plain, beveled, thread with couplings or sockets; Plastic caps and steel rings can be provided if possible
Surface Finish	Pre-galvanized, hot dipped galvanized, electro galvanized, black, painted
Zinc Coating	Pre-galvanized：5μm-25μm Hot dipped galvanized：35μm-200μm
Application	It is widely used in the construction, pipe of industrial, water pipe, plastic-steel doors and windows, fence equipment, telecommunication tubes as well as greenhouse tubes for different planting and breeding business.
Packing	1. Big OD: in bulk; 2. Small OD: packed by steel strips; 3. Woven cloth with 7 slats; 4. According to the requirements of client.

Core Characteristics and Application

Galvanized pipes are made by reacting the molten metal with the iron matrix to produce an alloy layer, so that the matrix and the coating are combined. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

The hot-dip galvanized steel pipe substrate undergoes complex physical and chemical reactions with the molten plating solution to form a corrosion-resistant zinc-iron alloy layer with a compact structure. The alloy layer is integrated with the pure zinc layer and the steel tube substrate. Therefore, it has strong corrosion resistance.

Galvanized pipe is mainly used in tap water engineering, petrochemical industry, chemical industry, electric power industry, agricultural irrigation, urban construction.

For liquid transportation: water supply, drainage, sewage treatment projects, mud transportation, marine water transportation.

For gas transportation: gas, steam, liquefied petroleum gas.

Structural use: for piling pipes, for bridges; for wharfs, roads, building structures, marine piling pipes, etc.

Galvanized Steel Pipe Manufacturing Process:

- Material Selection:The process begins with carefully selecting high-quality steel, typically low carbon steel, which is known for its strength and malleability.- Pipe Formation:The selected steel undergoes a series of processes, including cutting, bending, and shaping, to form pipes of desired dimensions. This step ensures that the pipes meet specific industry requirements and project specifications.- Surface Preparation:To prepare the pipe surface for galvanization, it goes through a rigorous cleaning process to remove any impurities, such as dirt, grease, and oxides. This ensures optimal adhesion of the zinc coating.- Galvanization:After the surface of the steel pipe is pretreated, it can be galvanized. There are two methods of galvanizing: hot-dip galvanizing and electro-galvanizing. Hot-dip galvanizing is to immerse the steel pipe in molten zinc, so that the zinc reacts with the surface of the steel pipe to form a layer of zinc. Electrogalvanizing is to immerse the steel pipe in an electrolyte solution containing zinc ions, and through the action of electric current, the zinc ions are reduced to a zinc layer on the surface of the steel pipe.- Cooling and Inspection:After galvanization, the pipes are carefully cooled and inspected for uniformity, adhesion, and thickness of the zinc coating. This step ensures the quality and durability of the finished product.

Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel ,and our company also is a very professional and technical foreign trade
company for steel products. We have more export experience with competitive price and best after-sales service. Apart from this,we can provide a wide range of steel products to meet the requirement of customer.

Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time no matter if the price change lot or not. Honesty is our company's tenet.

Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours,meanwhile,the Skype,Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a best price soon.

Q: Do you accept the third party inspection?
A: Yes absolutely we accept.

Q: Do you provide samples ? is it free or extra?
A: The sample could can provide for customer with free,but the freight will be covered by customer account. The sample freight will be returned to customer account after we cooperate.
