Name: DX51D Color Coated Galvanized Steel Coil 0.3mm 0.6mm Prepainted Steel Products PPGI Color Coated Steel Coil Bending Cutting
Brand: Kangtao
Rating: 5.0 (14 reviews)

5 0 Reviews

Brand:
Kangtao
Certification:
ISO, CE, SGS
Surface Treatment:
Top paint: FVDF, HDP, SMP, PE, PU Prime paint: polyurethane, epoxy, PE Back paint: epoxy, modified polyester
Width:
600~1500 mm
Thickness:
0.12~1.5 mm
Standard:
ASTM, JIS, EN
Technique:
Hot Rolled Cold Rolled
Material:
SGCC, DX51D, SGCH
Type:
Steel Coil
Zinc Coating:
Top coating 15+5um, back paint 7+3um, or customized

Quantity:
Availability:





Inquire Add to Basket

Product Description

PPGI STEEL COILS

Color-coated coils are based on hot-dip galvanized sheets, hot-dip galvanized sheets, and electro-galvanized sheets. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic coatings are applied on the surface, and then A product that is baked and cured. It is named after the colored steel coils coated with various colors of organic coatings, referred to as color-coated coils.

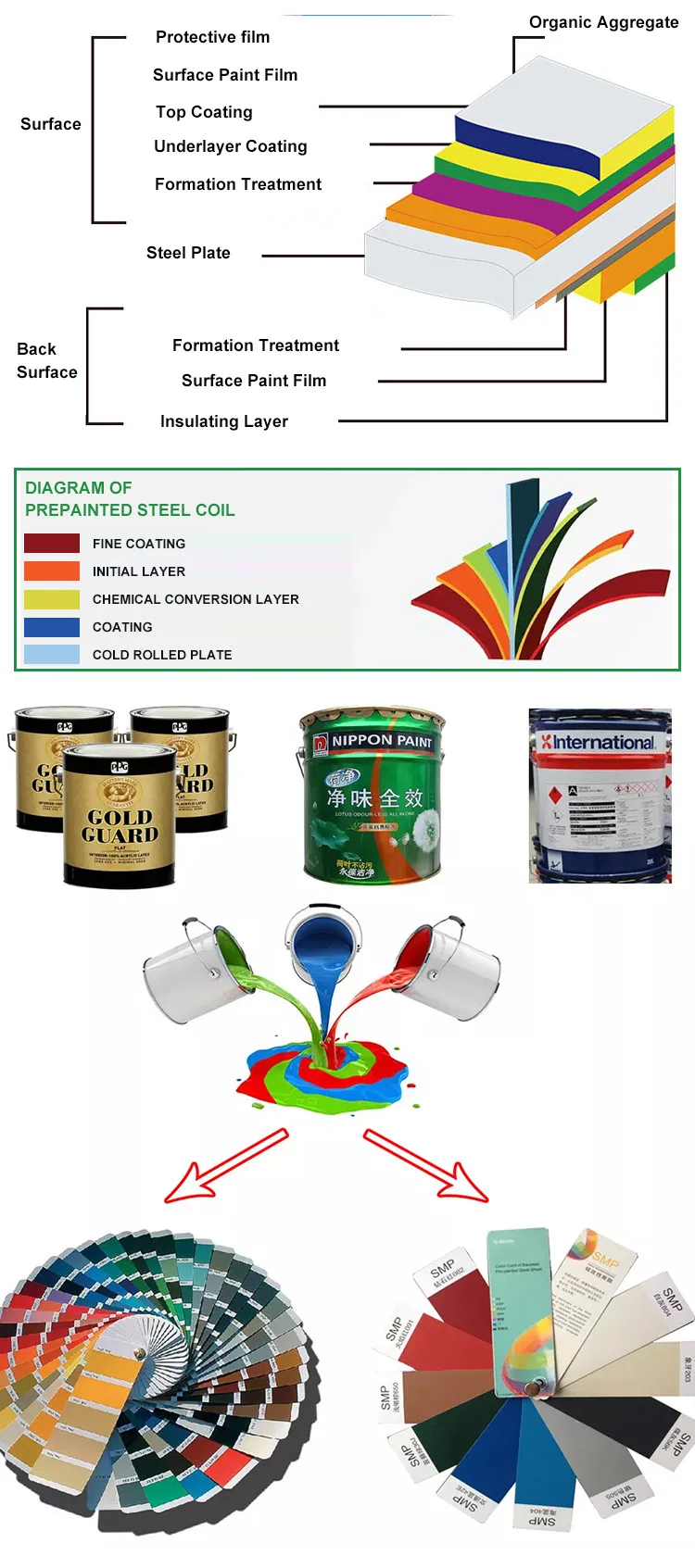

1. Top paint film: RPE, SMP, HDP, PVDF, Other paints.
Function: It functions as a sunlight proof cover,especially prevent the destroy by the ultraviolet rays.When the top paint film reaches a certain thickness, it forms a compact cover,and reduce the water and oxygen permeability.
2. Primer paint film: Polyurethane, Epoxy, PE.
Function: Strengthen the adhesiveness between the top paint film and the basemetal. Even permeable water happens, the top paint film will not peel off.There is corrosion inhibitor which is corrosion resistance.Polyurethane is necessary for higher processing flexibility and weather resistance requirements.
3. Passivation layer Function:

Increase the adhesion between the metallic layer and coating film. Extend life span also.
4. Metallic coating Function:

The metallic coating provides the fundamental protection for the steel.The popular coating metal are galvanized, galvalumed and other alloyed metals.
5. Substrate steel Cold rolled steel is usually used as substrate, it decides the mechanical properties and the steel shape and flatness.
6. Back paint film Epoxy, Modified PE.

Back paint can sustain color in good condition and has good binding.

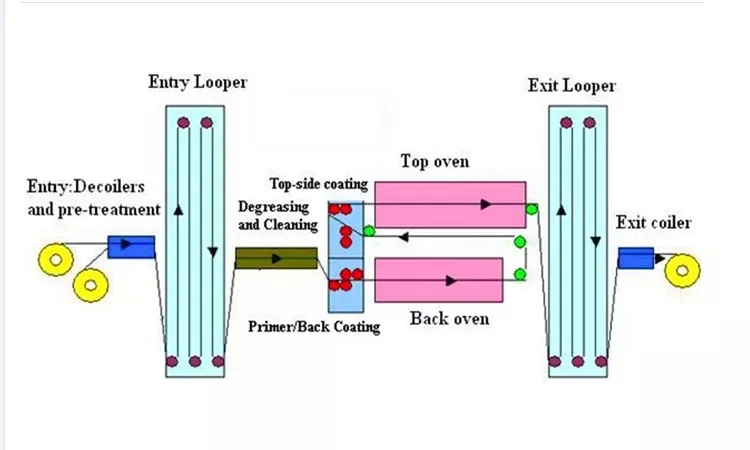

PPGI Steel Coils production process

On continuous units, cold-rolled strip steel and galvanized steel strip (electro-galvanized and hot-dip galvanized) are used as the bottom plate. The color-coated coil is pretreated (degreased, chemically treated), coated with one or more layers of liquid paint by roller coating, and the plate obtained after baking and cooling is a coated steel plate. Because the coating can have a variety of colors, the coated steel plate is usually called a color coated steel plate. Because the coating is carried out before the steel plate is formed and processed, it is also called pre-coated steel plate. The process flow of color-coated steel coils is as follows: color-coated steel sheets are based on cold-rolled steel sheets and galvanized steel sheets, after surface pretreatment (degreasing, cleaning, chemical conversion), continuous coating (roller coating method), baking, Cooled product.

Specification

item	value
Base material	Galvanized / Galvalume
Thickness	0.12~1.5 mm
Width	600~1500 mm
Coil ID	508 mm /610 mm
Coating	Top coating 15+5um, back paint 7+3um, or customized
Coil weight	3-5 tons
Colors	RAL Colors or as sample
Material	SGCC, DX51D, SGCH
Surface treatment	Top paint: FVDF, HDP, SMP, PE, PU Prime paint: polyurethane, epoxy, PE Back paint: epoxy, modified polyester
Standard	ASTM, JIS, EN
Certificate	ISO, CE, SGS
Payment terms	30% T/T + 70% T/T balance within 5 days after B/L copy, 30% T/T + 70% Irrevocable L/C at sight
Delivery times	Delivered within 30 days after the receipt of deposit
Package	Tied up with steel strips and wrapped with water proof paper

Product Description

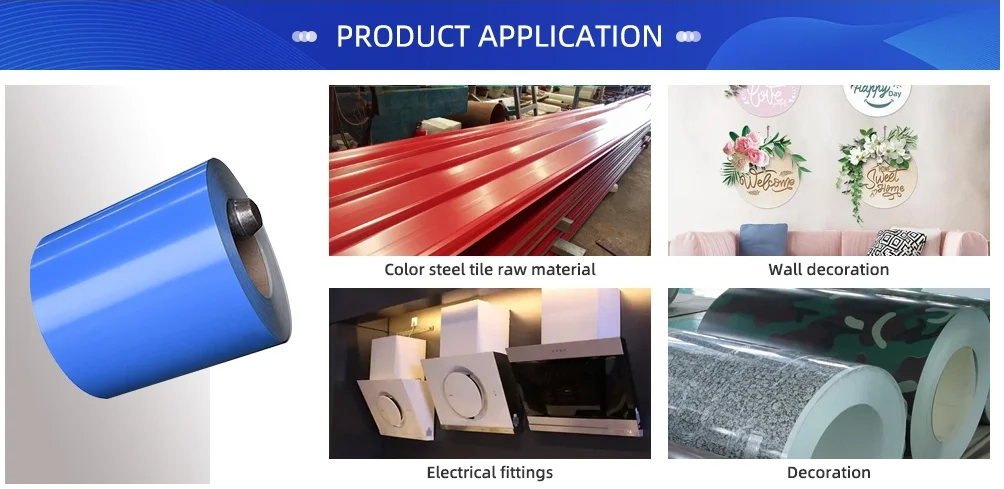

PPGI Steel Coils ( Pre-painted galvanized Color Coated Steel Coils ) Application

1. In the construction industry, roofs, roof structures, rolling doors, kiosks, shutters, guard doors, street waiting rooms, ventilation channels, etc.;

2. Furniture industry, refrigerators, air conditioners, electronic stoves, washing machine shells, petroleum stoves, etc.;

3. Transportation industry, automotive ceilings, back panels, hoardings, car shells, tractors, ship compartments, etc. Among these uses, steel structure workshops, composite panel workshops, and color steel tile factories are used more.

For the development trend of color-coated rolls, there is no clear distinction between good and bad. Everything is based on a relative state. It is mainly based on the target customers, how the manufacturer positions the product, and adapting to the market. is the key factor. The technical requirements for galvanized and magnesium-aluminum plating are relatively high, and the products can be used in automobiles, home appliances and other fields. The color-coated rolls are widely used in large-span workshops, warehouses, office buildings, villas, roofs, air purification rooms, cold storage, shops, kiosks and temporary housing.

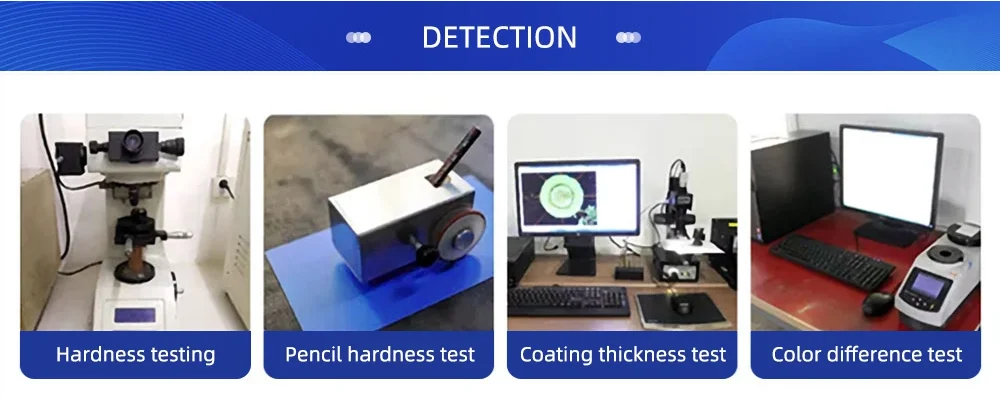

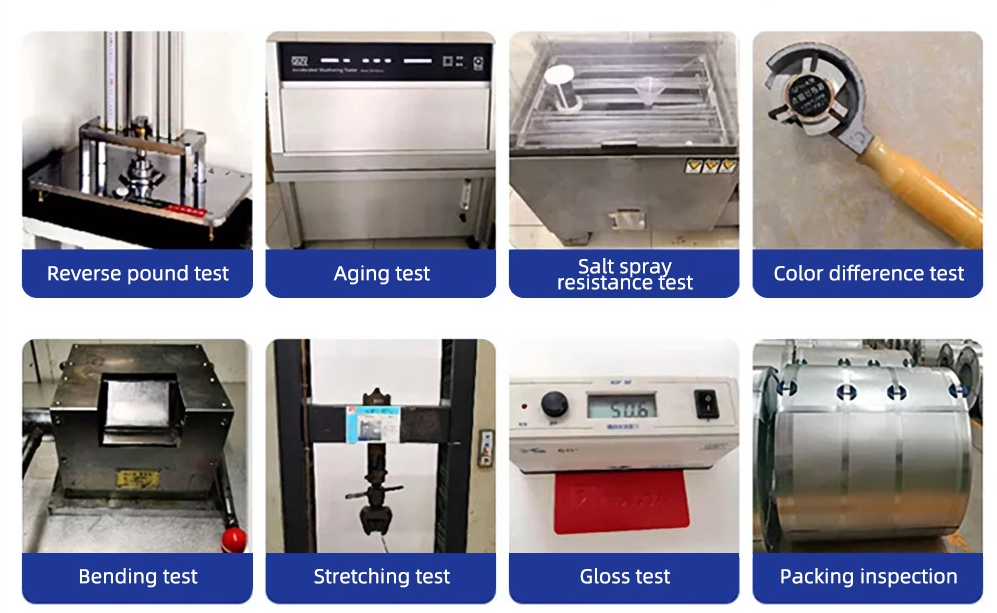

About PPGI STEEL COILS TEST

Usually after all the ppgi pre-painted color coated coils finished production, the factory will select a certain proportion of the pre-painted rolls for testing, we also accept any unilateral testing, such as QC Test , SGS Test and others

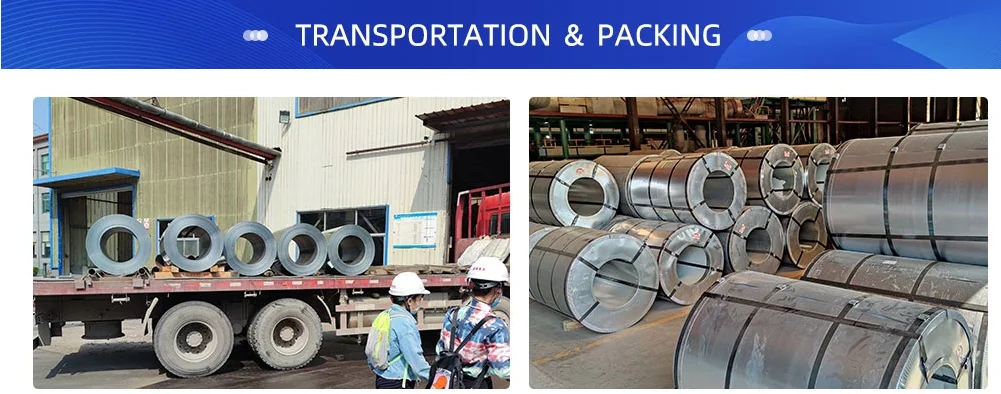

Packing & Delivery

About PPGI Steel Coils Packing and Shipping

1. packing:

3 layers of packing. Inside is craft paper, middle is water plastic film and outside GI steel sheet to be covered by
steel strips with lock, with inner coil sleeve.

2. Shipping:

We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
3. Trade terms:

FOB/CIF/CFR.
4. Shipping port:

Qingdao/Tianjin/Shanghai.
5. Shipment:
Quantity<100 tons: container
a. Length of goods<6m, loaded in 20GP Container;
b. Length of goods<12m, loaded in 40GP Container.
Remark:

Size of 20GP Container (inside:5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
Quantity>100 tons: bulk ship
6. Delivery time: Normal size: 3-7 days send from warehouse directly.
Special size:15-30 days custom made for you.

Standard export seaworthy packing.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2002,sell to Mid East(30.00%),Southeast Asia(25.00%),Africa(15.00%),South Asia(10.00%),Central America(5.00%),South America(4.00%),North America(2.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PPGI, Galvanized Steel Coils, Galvalume Steel Coil, Roofing Sheet, Carbon Steel Plate

4. why should you buy from us not from other suppliers?
Jiangsukangtaosteel founded in 2002, with five branch companies and is well-funded. Mainly engaged in : PPGI ,galvanized steel , steel plate , round bar, steel pipe ,Stainless steel product ,angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,JPY,HKD,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
