ASTM Standard 26 Gauge Aluzinc Galvalume Steel Coil AZ150 Galvalum Steel Sheet in Roll

ASTM Standard 26 Gauge Aluzinc Galvalume Steel Coil AZ150 Galvalum Steel Sheet in Roll

5 0 Reviews

Brand:
Kangtao
Application:
Building material
Width:
300mm-1250mm
Thickness:
0.12mm-2.0mm
Product Name:
Galvalume steel coil/Aluminum zinc coated steel coil
Standard:
JIS G3302,JIS G3312,GB/T-12754-2006
Type:
AFP( anti-fingerprint), Passivate
Zinc Coating:
30-275g/m2

Quantity:
Availability:





Inquire Add to Basket

Product Description

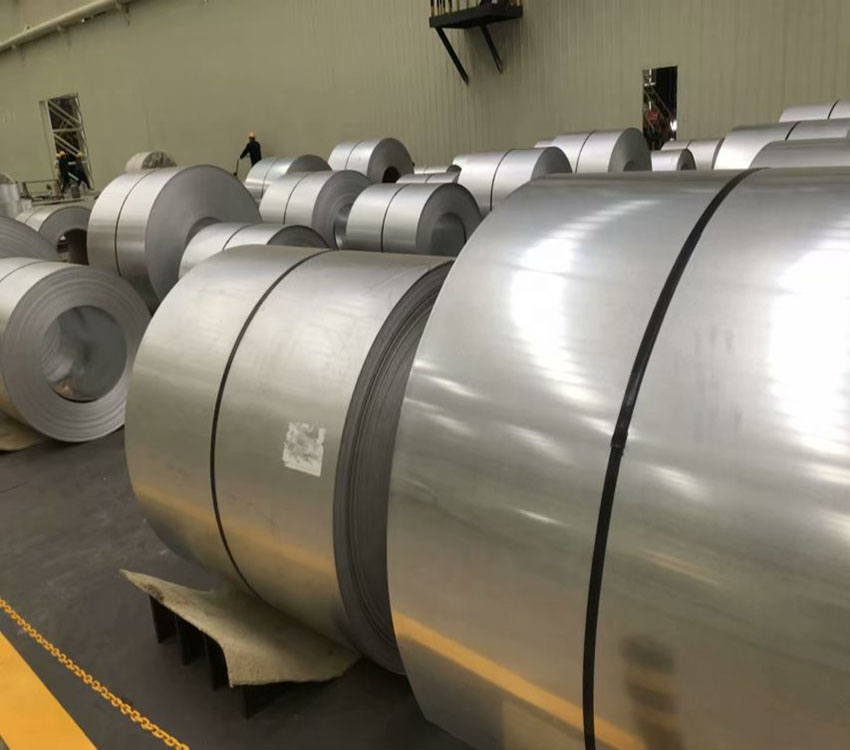

Galvalume steel coil

Aluminum zinc coated steel plate (galvalume steel) is an alloy coated steel plate widely used in various fields such as building materials, household appliances, automobiles, environment, machinery, ships, etc. Aluminum zinc coated steel plate is an alloy coated steel plate that is coated with aluminum zinc alloy on the surface of the steel plate, consisting of 55% aluminum, 43.4% zinc, and 1.6% silicon solidified at a high temperature of 600 ℃. Its entire structure is composed of aluminum iron silicon zinc, forming a dense quaternary crystal.

Parameter

Products	Galvalume steel coil/Aluminum zinc coated steel coil
Standard	JIS G3302,JIS G3312,GB/T-12754-2006
Type	AFP( anti-fingerprint), Passivate
Thickness	0.12mm-2.0mm
Width	300mm-1250mm
Spangle	Normal Spangle
Zinc coating	30-275g/m2
Coil weight	3-5tons
Coil ID	508mm,according to request
MOQ	25tons

Surface of the galvalume steel coil

The surface of the aluminum zinc coated steel plate presents a unique smooth, flat, and gorgeous star pattern, with a silver white base color. The special coating structure gives it excellent corrosion resistance. The normal service life of aluminum zinc coated plates can reach 25 years, and they have good heat resistance and can be used in high-temperature environments at 315 ℃; The adhesion between the coating and the paint film is good, and it has good processing performance, which can be used for stamping, shearing, welding, etc; The surface conductivity is very good.

The advantages of Aluminum zinc coated steel coil are as follows:

1. Corrosion resistance: Aluminum zinc coated steel sheet has strong corrosion resistance, with a normal service life of up to 25 years, which is 3-6 times longer than galvanized sheet.The corrosion resistance of aluminum zinc coated plates comes from the maintenance function of the aluminum barrier layer and the dedicated maintenance function of zinc. When zinc is used for dedicated maintenance in cutting edges, scratches, and coating scratches, aluminum forms an insoluble oxide layer, demonstrating the barrier maintenance function. Aluminum zinc alloy steel coils have been subjected to outdoor exposure tests in various atmospheric environments for over 20 years, confirming that the edge cutting maintenance function of 55% aluminum zinc coated steel plates is better than that of galvanized steel plates. 2. Heat resistance: Aluminum zinc coated steel plate have a high thermal reflectivity, making them suitable for use as roof materials. Aluminum zinc alloy steel plates also have excellent heat resistance and can be used in high-temperature environments up to 315 degrees Celsius. 3. Recoating ability: (Paint film adhesion) Aluminum zinc coated steel plate can maintain excellent adhesion with the paint film, and can be directly sprayed or powdered without special pre-treatment. 4. Corrosion resistance after coating

APPLICATION

Buildings: roofs, garages, walls, pipelines, and modular houses, etcAutomobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etcHome appliances: refrigerator backplate, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof strip, LED backlight, electrical cabinet, etcAgriculture: pig houses, chicken houses, granaries, greenhouse pipes, etcOthers: heat insulation cover, heat exchanger, dryer, water heater, etc

Certificate

Quality control

We have always been committed to providing high-quality products and services to every customer. Before each shipment, we will inspect the quantity and quality of the goods for the customer. Measure the thickness and width of the aluminum zinc coated steel coil. Inspect the surface appearance and measure the zinc layer. To ensure that the product is not affected by the external environment during transportation, we will ensure that the aluminum zinc coated steel coil is tightly packaged. Including plastic bags, waterproof paper, and outer iron sheet.

Customer's feedback

Customer feedback on us

Our aluminum zinc coated coils are exported to multiple regions such as Africa, South America, Europe, and Southeast Asia, receiving high praise from customers from different countries around the world. We have established a long-term cooperative relationship with them.

FAQ

Q1: What is your terms of payment?
A: 30% T/T as the upfront deposit, 70% before delivery. We will show you the photos of products and package before you pay the balance.

Q2: what is the terms of delivery?
A: EXW, FOB, CIF, CFR, DDU

Q3: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers’
requirement.

Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.

Q6: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by SORUN piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee the quality.

Q7: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jiangsu，suzhou province, you are welcome to investigate in
any ways, by all means, you could place an order in alibaba with trade assurance which could secure your payment.
