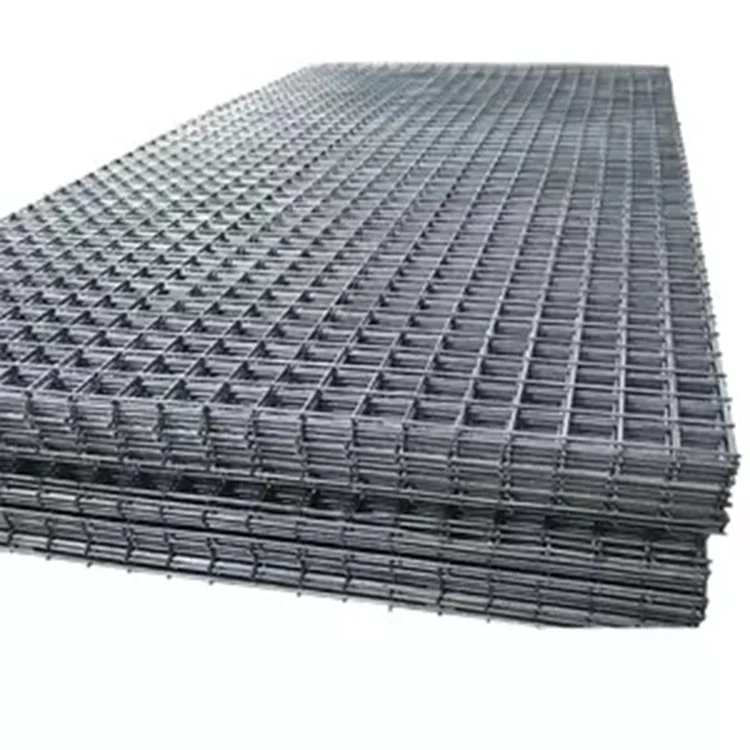

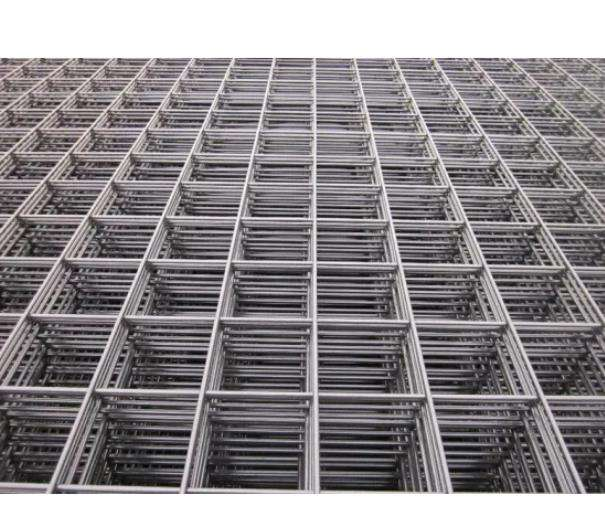

A98 A142 A252 A393 C503 Sl92 102 665 Brc Mesh Reinforcing Steel Wire Mesh

A98 A142 A252 A393 C503 Sl92 102 665 Brc Mesh Reinforcing Steel Wire Mesh

5 0 Reviews

Brand:
Kangtao
Application:
Wire Fencing And Building Material
Certification:
BS4449,JIS standard,ASTM/A615
Grade:
HRB400/500,ASTM A615 GR40/60
Surface Treatment:
hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated
Type:
Weld plain sheet

Quantity:
Availability:





Inquire Add to Basket

Product Description

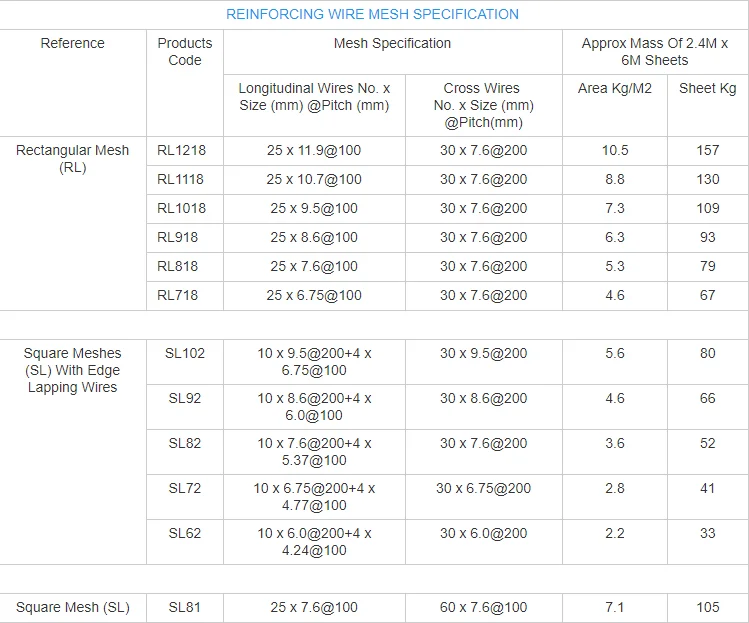

Specification

Product Name	Reinforced mesh
Wire diameter	3mm, 4mm, 5mm,6mm, 7mm,8mm,9mm, 10mm or as your requirement
Mesh size	50x50mm 100x100mm, 150x150mm 200 x 200mm or as your request
Panel size	1000x2000mm, 1579 x2254mm ,1500 x 3000mm, 2000 x4000mm, or as your request
Surface treatment	hot dip galvanized before/after welded, electrio galvanized before/ after welded, pvc coated and powder coated
Applications	Wire Fencing And Building Material
Grade	HRB400/500,ASTM A615 GR40/60
Standard	BS4449,JIS standard,ASTM/A615
Shape	Weld plain sheet
Payment terms	L/C,D/A,D/P,T/T,Western Union
Supply ablitity	500000 Metric Ton/Metric Tons per Month
MOQ	1 Metric Ton/Metric Tons

Product Description

According to the technical specification, the welded mesh of building reinforcement mesh should be made of crb550 cold-rolled ribbed reinforcement or crb510 cold drawn smooth reinforcement. A piece of welded mesh should be welded with the same type of reinforcement. According to the shape and specification, the welding mesh can be divided into two types: setting and customization. The spacing and diameter of reinforcement in two directions of shaped welded mesh can be different, but the reinforcement in the same direction shall have the same diameter, spacing and length, which have been specified in relevant standards and regulations. The shape and size of customized welding mesh shall be determined by the supplier and the buyer through negotiation according to the design and construction requirements and in combination with the specific project conditions.

Application

It has the characteristics of improving project quality, simplifying construction twice, shortening construction period, saving steel by 33%, reducing cost by 30% and improving efficiency by 75%.It is used in various reinforced concrete structural projects such as bridges, expressways, tunnel back cladding, high-rise floors, subway culverts, power plant projects, dam foundations, port wharfs, river embankment protective walls, airport runways and so on.

Feed back

Packing & Delivery

FAQ

Q1:What are your company's main products ?
A1: Our main products are stainless steel/carbon/galvanized plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other steel
companies

Q4. How many coutries you already exported ?
A4: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q5. Can you provide sample ?
A5: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.

Steel Wire Mesh Wire Mesh Reinforced mesh

A98 A142 A252 A393 C503 Sl92 102 665 Brc Mesh Reinforcing Steel Wire Mesh
